Reference project

A320 – Fatigue Test

Fatigue assessment of test equipment according to FKM

The distinctive opening in the outer steel concrete shell transfers the loads via a spatially curved supporting structure into the overall system.

Objective & methodology

  • Proof of load carrying capacity under cyclic loading
  • Assessment of critical connections and welds
  • Verification according to FKM
A320 – Fatigue Test
36 load combinations
3D FE model
Automated load takeover
Safe design

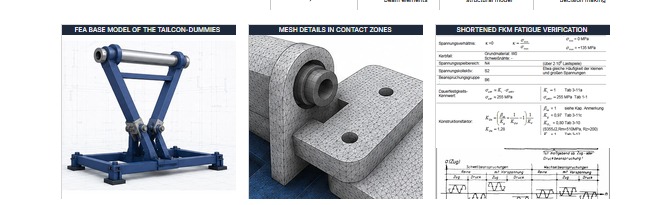

Project details
